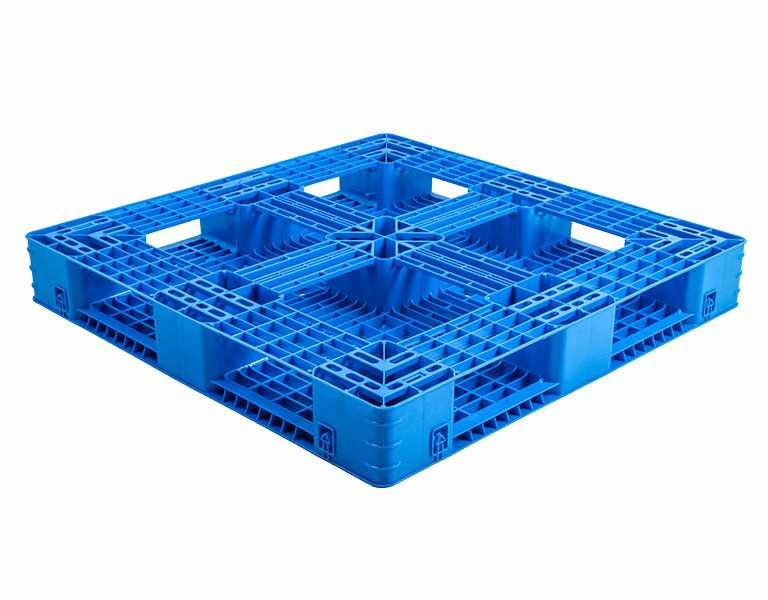

1111 Vented Deck Full Perimeter Plastic Pallet

1111 Vented Deck Full Perimeter Plastic Pallet

Suitable applications: Stacked storage in multi-level warehouses, loading into maritime containers (the 1100×1100mm size is ideal for standard container floor layouts), industrial warehouses handling heavy loads, use with drive-in racking systems, and closed-loop material transport.

Handling equipment: Electric counterbalance forklifts, reach trucks, and heavy-duty electric stackers.

Target industries: Chemical manufacturing; grains, edible oils, and agricultural products; petrochemicals; food and beverage exports; fast-moving consumer goods (FMCG); and third-party logistics (3PL).

+86 190 5055 5059

Description

Dimensions

1100*1100*150 mm

Structure Type

Smooth Flat Deck, Solid Block 9-Leg Base

Manufacturing Process

High-Pressure Single-Piece Injection Molding

Material Option

High-Density Polyethylene (HDPE) / Polypropylene (PP)

Static Load Capacity

4000KG

Dynamic Load Capacity

1000KG

Racking Load Capacity

500-800KG

Entry Type

4-Way Entry for Forklifts & Manual Hydraulic Pallet Jacks

Color

Customized （Blue, Green, Black, Orange......）

Weight

9KG

Single-Piece Injection Molding (One-Shot Molded):

Engineered without structural welds or secondary joints, providing continuous load distribution, exceptional torsional rigidity, and resistance to impact cracking during aggressive forklift handling.

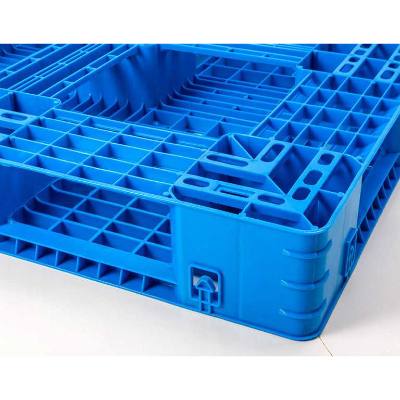

Full Perimeter (6-Runner / Picture-Frame) Base:

The cross-shaped bottom runner arrangement spreads surface pressure evenly. This allows stable double-stacking of loaded pallets in multi-tier warehouse configurations and ISO shipping containers without damaging lower cargo layers.

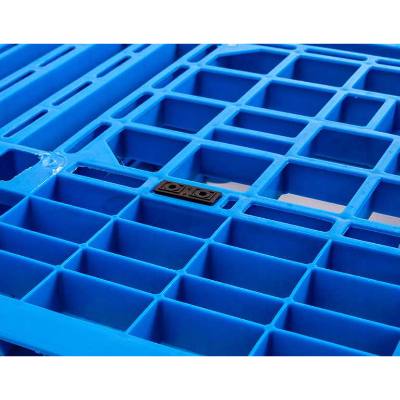

Vented Open Deck Construction:

The optimized honeycomb grid pattern lowers overall tare weight while maintaining high bending resistance. It promotes heat dissipation, facilitates drainage, and enables easy pressure washing.

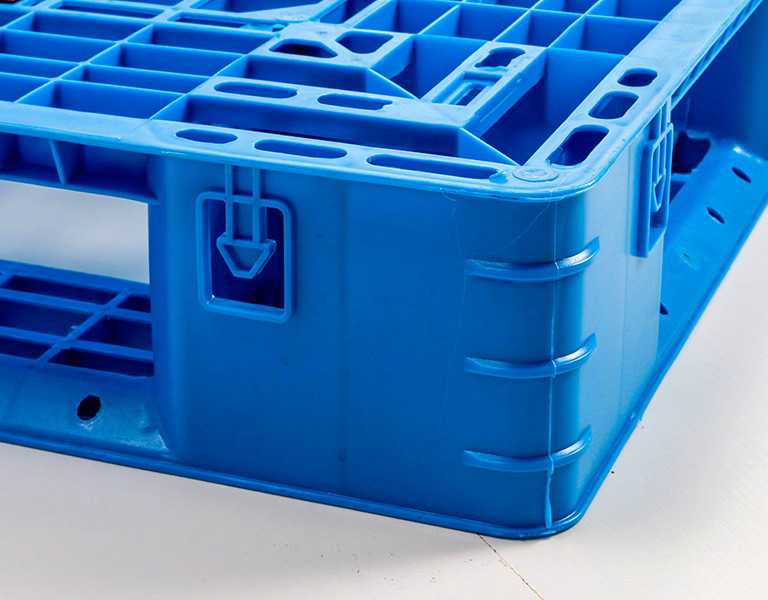

4-Way Bevel Fork Entry Portals:

Features chamfered entry ramps along all four bottom runners to guide forklift tines effortlessly into the pallet, minimizing lead-edge abrasion and frame shock.

Anti-Slip & Tracking Integration:

Equipped with high-friction rubber pads inserted directly into the top deck to hold stacked boxes and bulk bags in place. Includes side card/receptacle slots for barcode labeling and RFID asset identification.
