Description

Dimensions

1200 × 1000 × 150 mm (Standard Industrial Footprint)

Structure Type

Smooth Flat Deck, 3-Runner Base (3 Bottom Skids)

Manufacturing Process

High-Pressure Single-Piece Injection Molding

Material Option

High-Density Polyethylene (HDPE) / Polypropylene (PP)

Static Load Capacity

4000KG

Dynamic Load Capacity

1000KG

Racking Load Capacity

800KG

Entry Type

4-Way Entry for Forklifts & Manual Hydraulic Pallet Jacks

Color

Customized （Blue, Green, Black, Orange......）

Weight

15KG

Single-Piece High-Pressure Injection Molding:

Molded in a single shot using high-density polyethylene (HDPE). Eliminates structural welds, weak joints, and mechanical fasteners, delivering maximum impact resistance and high flexural strength under load.

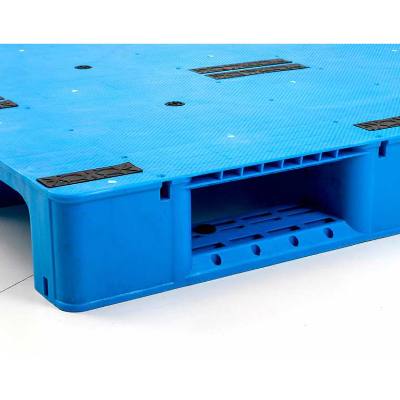

Seamless Hygienic Flat Top Deck:

The totally enclosed, smooth top surface prevents dirt, dust, and liquid traps. It allows quick high-pressure spray washing and protects delicate outer packaging, corrugated cartons, and soft bags from puncture or surface abrasion.

3-Runner Load Distribution Base:

Features three longitudinal bottom skids that deliver reliable stability on warehouse racking beams, roller conveyor channels, and direct floor stacking layouts.

Embedded Surface Anti-Slip Strips:

Equipped with high-friction elastomeric anti-slip strips molded directly into the upper deck. These prevent cargo slipping and load shifting during high-speed fork transport and sharp cornering.

Universal 1200x1000 mm Industrial Footprint:

Adheres to standard global distribution dimensions, ensuring complete cross-compatibility with automated storage and retrieval systems (ASRS), racking infrastructure, and freight trucks.

Hygienic & ISPM-15 Exempt:

100% impervious to water, oils, weak acids, and biological contaminants. Fully exempt from ISPM-15 heat treatment and fumigation mandates for smooth international export handling.
