Description

Dimensions

1200 × 1000 × 150 mm (Standard Industrial Footprint)

Structure Type

Vented Open Grid Deck, 3-Runner Base (3 Bottom Skids)

Manufacturing Process

High-Pressure Single-Piece Injection Molding

Material Option

High-Density Polyethylene (HDPE) / Polypropylene (PP)

Static Load Capacity

4,000 kg (4 Metric Tons, Uniformly Distributed Load)

Dynamic Load Capacity

1,000 kg (1 Metric Ton, Uniformly Distributed Load)

Racking Load Capacity

Floor Storage, Selective Racking & Roller Conveyor Compatible

Entry Type

4-Way Entry for Forklifts & Manual Hydraulic Pallet Jacks

Color

Customized （Blue, Green, Black, Orange......）

Weight

14.5 kg (Reinforced Heavy-Duty Construction)

Reinforced Single-Piece Injection Molding:

Molded in a single shot using premium high-density polyethylene (HDPE). Features reinforced ribbing and thick outer walls to yield a robust 14.5 kg frame that resists high-impact fork tine hits and heavy physical wear.

Standard Industrial Footprint (1200x1000 mm):

Conforms to international industrial logistics specifications, optimizing cube space inside shipping containers, dry vans, and warehouse racking bays.

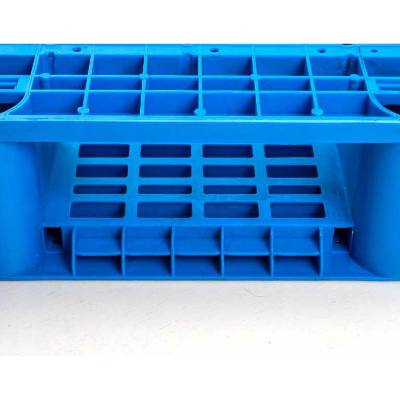

3-Runner Load Distribution Base:

Engineered with three full-length bottom skids that provide balanced weight distribution across factory floors, smooth passage over automated roller conveyors, and stable placement on warehouse racking.

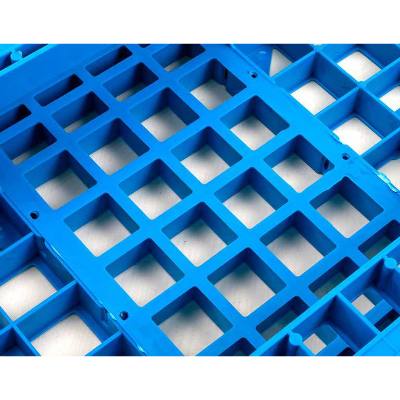

Heavy-Duty Vented Open Grid Deck:

The engineered lattice grid design maintains high torsional rigidity under load while promoting active airflow, preventing condensation under cargo, and simplifying washdown procedures.

Universal Handling Accessibility:

Provides full 4-way access for motorized forklifts and reach trucks, as well as 2-way entry through the runner channels for standard manual hydraulic hand jacks.

Hygienic & ISPM-15 Exempt Export Standard:

100% moisture-proof, chemical-resistant, and impervious to pests, rot, and biological contamination. Fully exempt from ISPM-15 heat treatment and fumigation mandates for seamless international trade.
